B2B – Request New Onboarding API

This API allows a B2B client to start a new onboarding session for a specific user under a specific integration. The API returns a generated onboarding link that can be delivered to the end user. The API is authenticated using an OAuth 2.0 Client Credentials access token.

Security Model

The B2B Request New Onboarding API uses the OAuth 2.0 Client Credentials grant type — a server-to-server authentication pattern intended for trusted backend systems. Unlike the Authorization Code flow, this grant does not involve a user-facing login step. Instead, your server authenticates directly using a client_id and client_secret to obtain an access token, which is then used to authorize API requests.

A Client Credentials integration is created automatically for organizations that have Integration Ecosystem enabled.

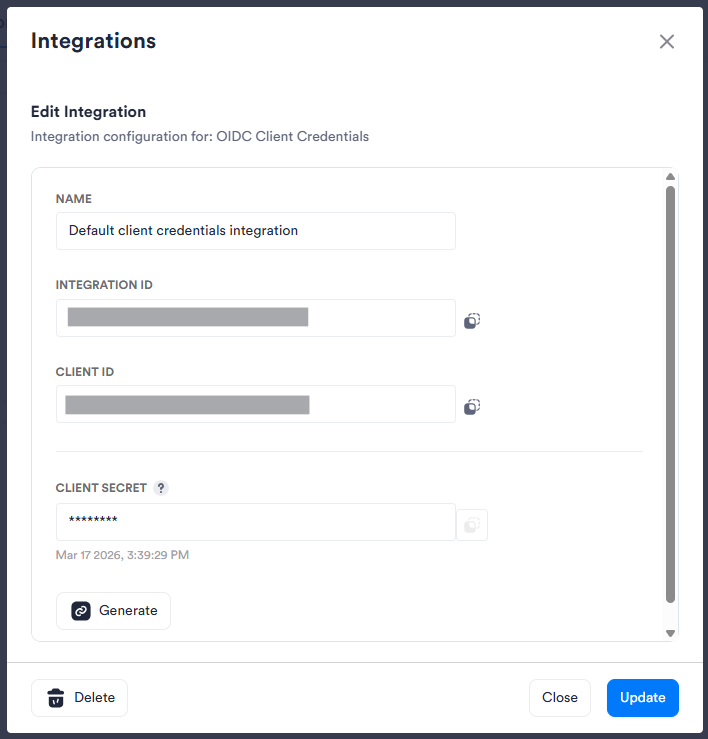

Find the Client ID & Client Secret

To view the integration details in Dashboard:

1. In the left navigation, go to Integrations.
2. On the Custom tab, click Default client credentials integration.

3. Copy the Client ID to use in the access token request.
4. Click Generate to create the Client Secret. Copy it to use in the access token request. The secret is shown and copyable only once. Store it securely in a secrets manager or vault. If lost, you must generate a new one.

Step 1: Obtain an Access Token

Before calling the B2B onboarding endpoint, your backend must obtain a Bearer token from the Incode authorization server using the Client Credentials grant.

Endpoint: POST {auth-server-url}/oauth2/token

Environment URLs

Request Parameters

Example Request

POST {auth-server-url}/oauth2/token HTTP/1.1
Content-Type: application/x-www-form-urlencoded
grant_type=client_credentials&client_id={clientId}&client_secret={secret}&scope=openid

A successful response returns an access_token to be used as a Bearer token in Step 2.

Step 2: Call the B2B Request New Onboarding Endpoint

Use the access token obtained in Step 1 to call the onboarding endpoint.

Endpoint: POST {base-api-url}/omni/b2b/onboarding/request-new

Environment URLs

Headers

• Authorization: Bearer <access_token>
• Content-Type: application/json
• x-api-key: {api_key}

Request Body

See Migrating from Workforce for a table that maps field names used in Workforce to field names used here.

Example Request Body

{
  "integrationReference": "int_b2b_prod_001",
  "loginHint": "[email protected]",
  "meetingLink": "https://meet.clientcompany.com/session/abc123",
  "notification": {
    "type": "URL"
  }
}

Step 3: Handle the Response

Success Response

HTTP Status: 200 OK

Returned when a new onboarding session is successfully created and the onboarding link is generated.

Response Body Schema

{
  "url": "string"
}

Example Response

{
  "url": "https://url/workflow/69a8a52d8cc9700f429f9565?uuid=e22199bf-246e-4761-99e1-873cef74fc52&url_uuid=a5fe50d9-5f8e-4cd1-bcd2-189fe08c845e"
}

Deliver this URL to the end user via your preferred channel (email, SMS, in-app redirect, etc.).

Error Responses

HTTP Status: 400 Bad Request

Returned when a required field is missing or has an invalid value.

Response Body Schema

{
  "timestamp": {timestamp},
  "status": {status},
  "error": {error},
  "message": {message},
  "path": "/omni/b2b/onboarding/request-new"
}

Example Error Responses

Missing or invalid loginHint:

{
  "timestamp": 1773781956561,
  "status": 400,
  "error": "Bad Request",
  "message": "Login hint be a non-empty string",
  "path": "/omni/b2b/onboarding/request-new"
}

Missing phone number when notification.type is SMS:

{
  "timestamp": 1773781994221,
  "status": 400,
  "error": "Bad Request",
  "message": "Phone must be provided when notification type is SMS",
  "path": "/omni/b2b/onboarding/request-new"
}

New candidate missing a name:

{
  "timestamp": 1773782210449,
  "status": 400,
  "error": "Bad Request",
  "message": "BadRequestException: New candidate must have name.",
  "path": "/omni/b2b/onboarding/request-new"
}

Migrating from Workforce

The table below maps deprecated Workforce request parameters to their Omni equivalents.
